4082 2.8 inches TET LCD Handheld LCR Meter Accuracy 0.2% Multifunction Capacitance Inductance Resistance Meter 0-2000H 0-20mF 0-20MΩ with USB Tester

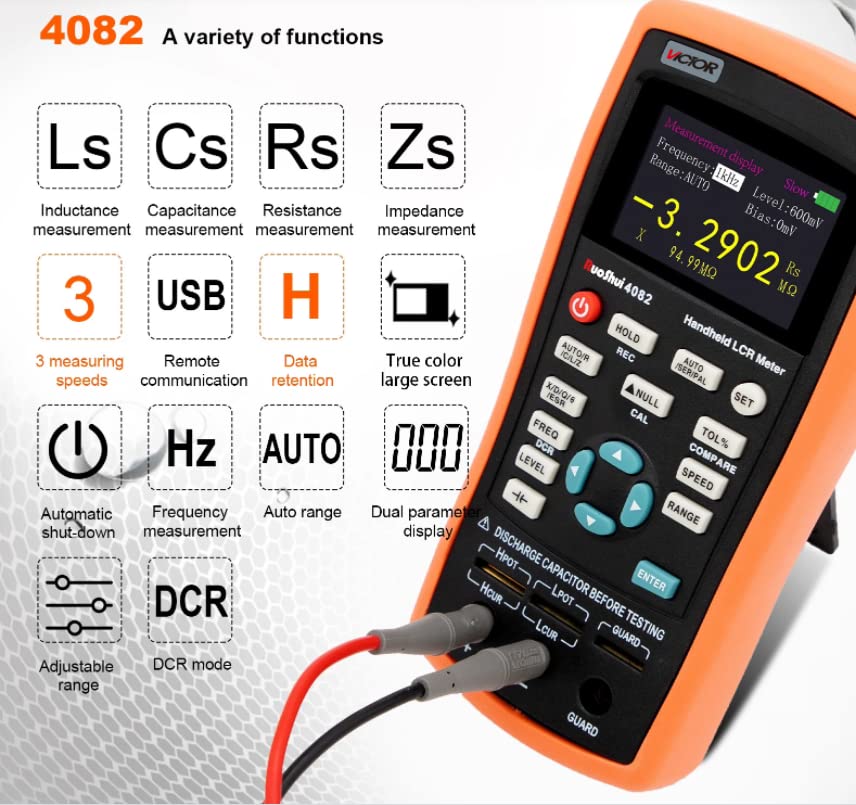

MeterTo MeterTo mainly offers instruments and tools. Please confirm the product is offered by our store MeterTo when purchasing, otherwise we can't ensure the quality and after-sale service. Introduction This LCR Meterprovides a resolution of four and a half digits for main parameters and a resolution of 0.0001 for secondary parameter. Its highest measurement frequency is 100kHz, and can measure the level of 0.6Vrms, and 0.3Vrms. Its measurement accuracy can reach 0.2%. It combines the convenience of a handheld instrument and good performance of a table-type one. It also has the recording mode to take readings; the convenient operation of open and short circuit correction function helps improve the measurement accuracy. Specification Model: 4082 Testing frequency 100Hz, 120Hz, 1KHz, 10KHz, 40KHz, 100KHz Basic accuracy 0.2% Electrolytic capacitor mode √ DCR mode √ Bias Voltage 0-500mV can be adjustable, step from 1mV Electric level 0-0.7 adjustable Digits display Main parameter: 5 digits; auxiliary parameter: 5 digits Main parameter L/C/R/Z Auxiliary parameter X/D/Q/θ/ESR Measuring Range (L) 0-2000H Measuring Range (C) 0-20mF Measuring Range (R) 0-20MΩ Measuring speed 1 time/s (slow), 2 times/s (moderate), 4 times/s (fast) Calibration function Open circuit calibration, short circuit calibration Filtering function Limit scope 1%~50% can be set; 1%, 5%, 10%, 20% are the fix points Errors measurement is use for comparing the percent errors between components and nominal value, meanwhile display Others Backlight luminance can be adjustable; USB device and auto power off can be set Standard Accessories Mini-USB cable; power adapter; short-circuit plate; plug made of red and black rubber; Lithium battery with large capacity

• Bias Voltage 0-500mV can be adjustable, step from 1mV;
• DCR mode √;
• Auxiliary parameter X/D/Q/θ/ESR;
• Its automatic range can display the results in the fast, medium, or slow mode;
• The standard instrument is equipped with remote communication function. The remote control and data acquisition are achieved by connecting it to the PC through Mini-USB cable.
