BOX3-1455N-BK Black Aluminum Box, for 3U Sized PCBs, with 11 Card Guide Slots, Box = 6.30 x 4.06 x 2.10 in
4.8 (139 items)
Limited Time SaleUS$19.32 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210260971 | Release Date | 2026/04/02 | List Price | US$12.88 | Model Number | 210260971 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

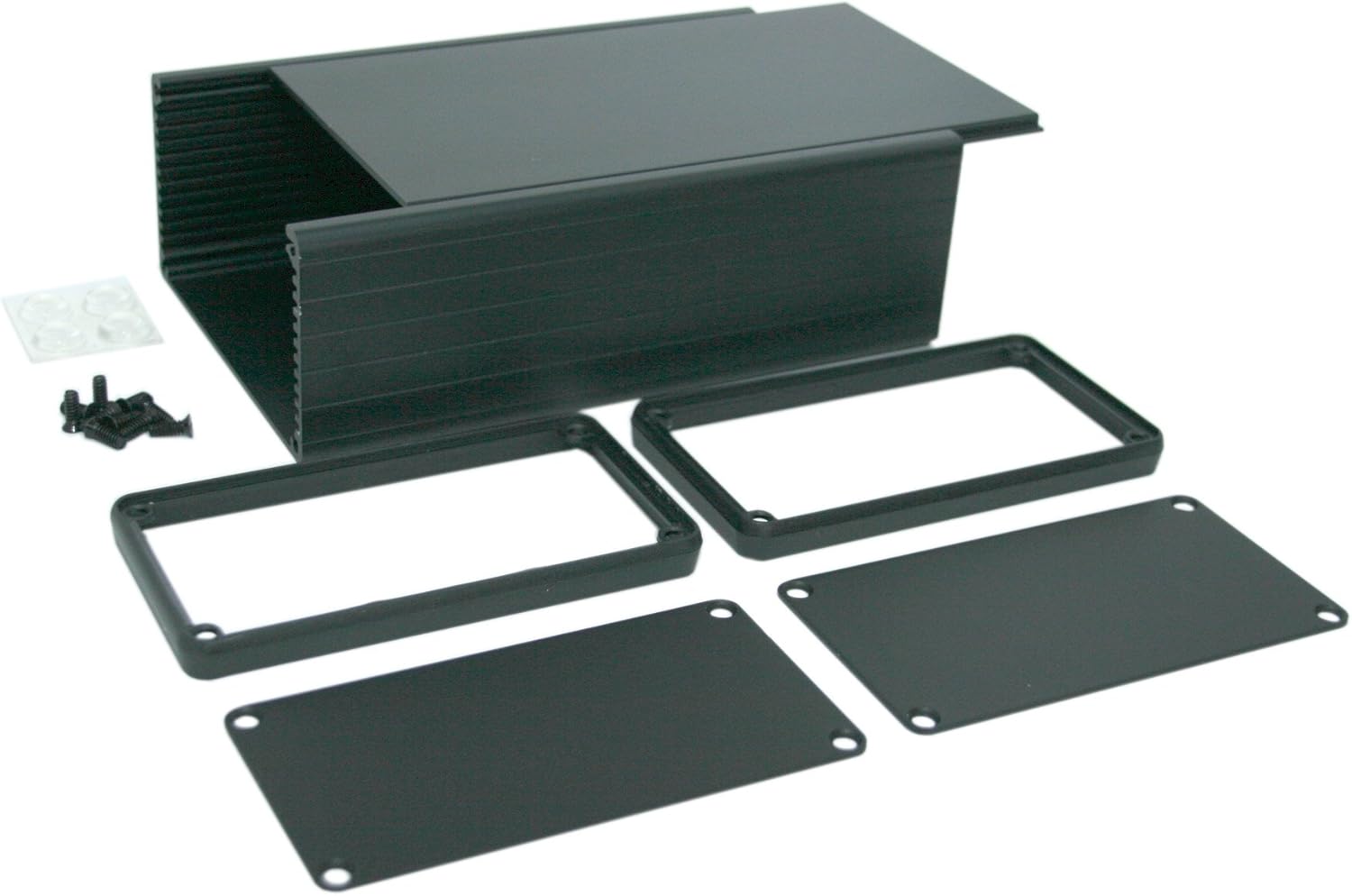

The BOX3-1455N-BK is an extruded aluminum enclosure for electronic projects. The enclosure is designed for BusBoard Prototype Systems 3U sized prototype PCBs (100x160mm boards) which are standard Eurocard/VME size. PC boards mount horizontally by sliding into built-in card guide slots. Two aluminum end panels are provided with attractive plastic bezels to hide the seams. The screws are recessed flathead type to provide a flat surface. The silver aluminum is clear anodized for protection from the elements. The end panels and the top plate can be removed for easy drilling or cutting of holes. Screws and adhesive rubber feet are included.
- Box is anodized black silver extruded aluminum with metal end plates and polycarbonate plastic bezel.
- Box Size 6.30 x 4.06 x 2.09 inches (160 x 103 x 53 mm)
- 11 built-in card guides for 3U sized PCBs (100 x 160mm).
- Side out top panel plate.
- Rugged body constructed from extruded aluminum with a minimum thickness of .06” (1.5 mm).
| Color | Black |
|---|---|
| Style | Industrial |
| Material | Aluminum |
| Brand Name | BusBoard Prototype Systems |
| Finish Type | Anodized |
| Item Weight | 0.01 Ounces |
| Manufacturer | Hammond |
| Model Number | 1455N1601BK |
| Installation Type | Screw-In |
| Item Dimensions D x W x H | 2.09"D x 4.06"W x 2.09"H |
