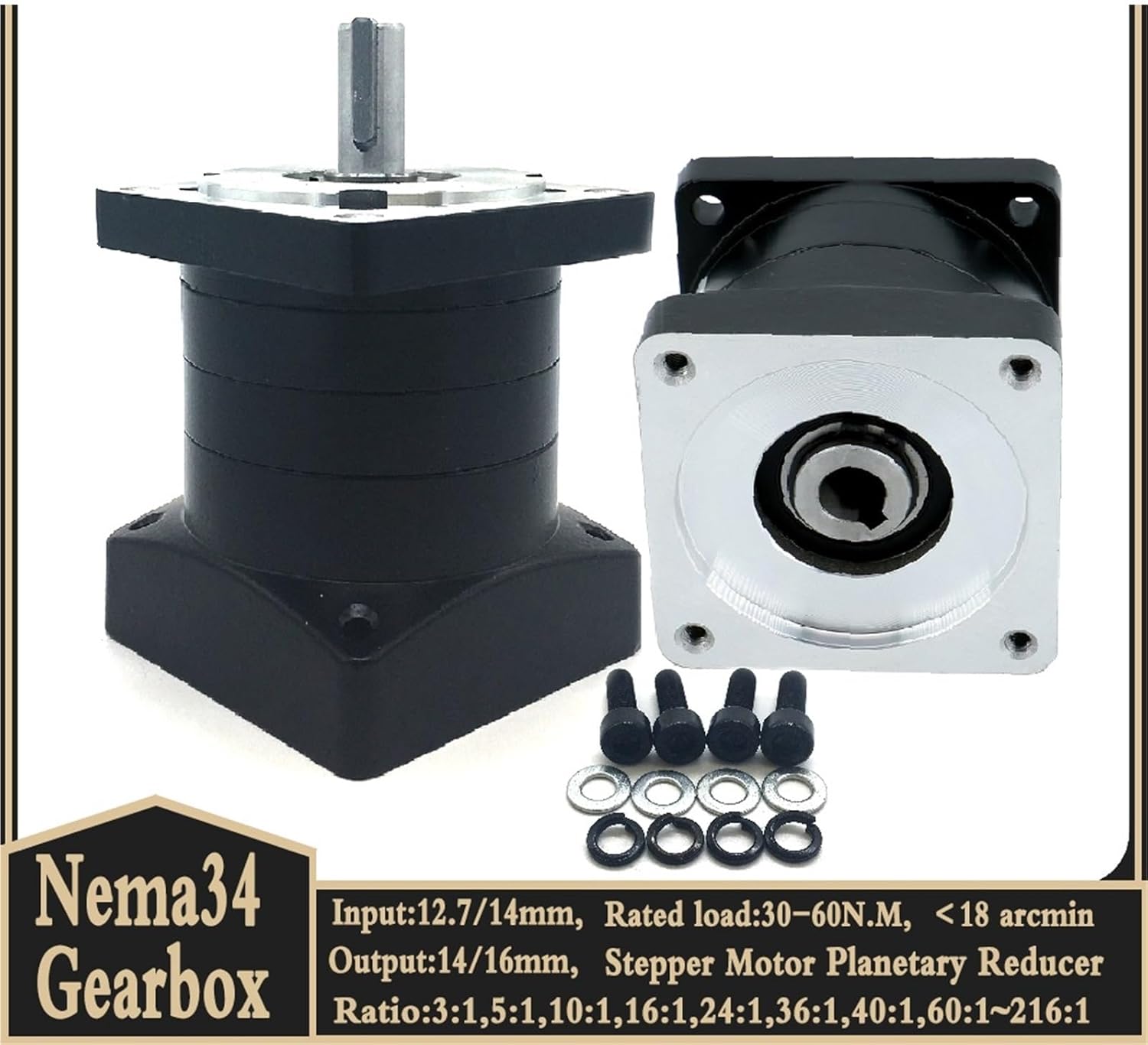

Nema 34 Planetary Gearbox Gear 86mm Speed Ratio 3:1,5:1,10:1~216 Input 1/2 Inch 12.7/14mm Nema34 Stepper Motor Reducer Step-Down(14 Input 14 Output,Ratio 120 to 1)
4.9 (74 items)
Limited Time SaleUS$1,167.83 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211319221 | Release Date | 2026/04/04 | List Price | US$778.56 | Model Number | 211319221 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

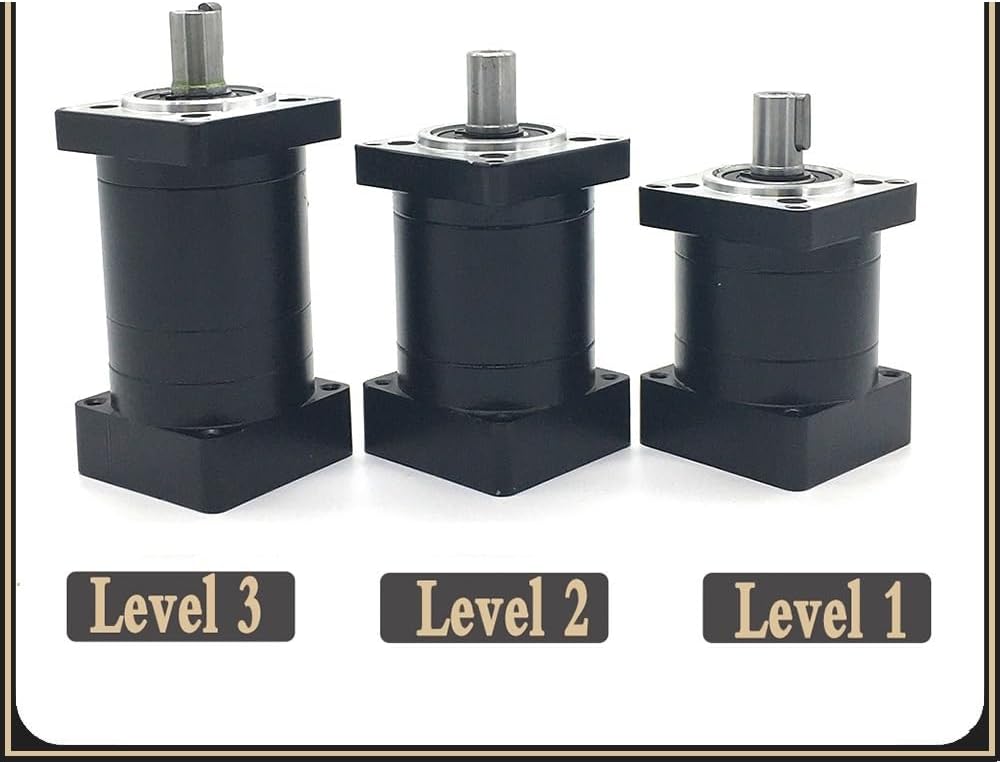

Gearboxes, Gearheads & Speed ReducersNema 34 Planetary Gearbox Gear 86mm Speed Ratio 3:1,5:1,10:1~216 Input 1/2 Inch 12.7/14mm Nema34 Stepper Motor Reducer Step-downPackage list: 1x Planetary Gearbox(Input:14mm)1x Key4x Install screws86PX Reducer Technical ParametersStageStage 1(L1)Stage 2(L2)Stage 3(L3)Speed Ratio3/4/5/6/8/1015/20/24/30/36/40/50/60100/120/150/200Input (MM)12.7/1412.7/1412.7/14Output shaft (MM)16/1416/1416/14Keyway (MM)5 5 5 Body length (MM)8095107Rated load (N.M)305060Maximum load (N.M)5080100Full load efficiency (%)959085Backlash Precision (arcmin)182535Rated input speed (RPM)300030003000Protection level (IP)656565Noise (dB)606060Average service life (H)200002000020000Gear material20Cr Carbon steel20Cr Carbon steel20Cr Carbon steel
- Gearboxes, Gearheads & Speed Reducers
- Nema 34 Planetary Gearbox Gear 86mm Speed Ratio 3:1,5:1,10:1~216 Input 1/2 Inch 12.7/14mm Nema34 Stepper Motor Reducer Step-down
| Model | VKvmNYlxx |
|---|---|
| Brand Name | VKvmNYlxx |
| Model Name | VKvmNYlxx |
| Manufacturer | VKvmNYlxx |
