RJ11/RJ12 to 6P6C Jack 4-Way Bus Splitter Terminal Block, Connector DIN Rail Mount RJ11 Connector RJ12 Connector
4.0 (44 items)
Limited Time SaleUS$37.50 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211034307 | Release Date | 2026/04/04 | List Price | US$25.00 | Model Number | 211034307 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

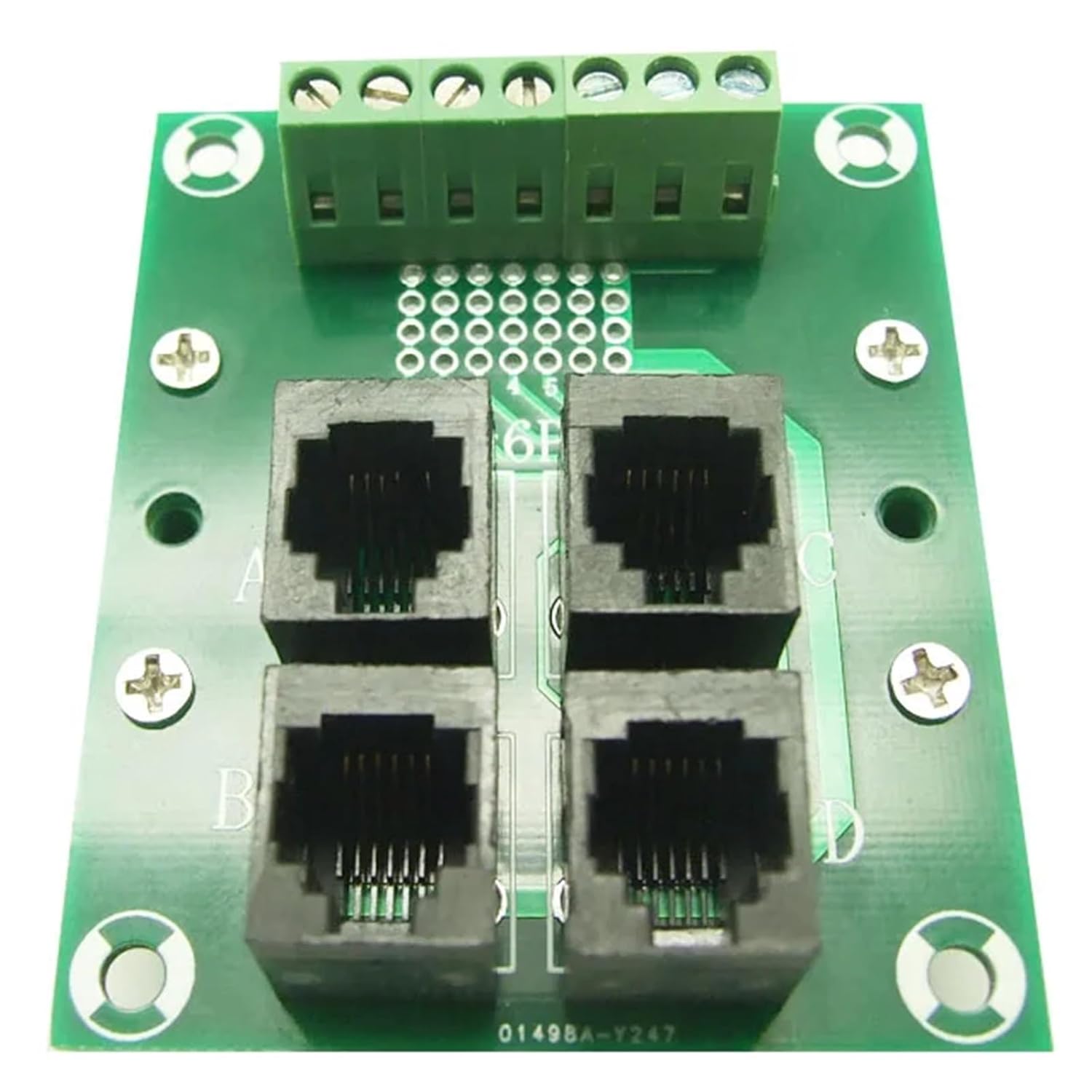

Disconnect BlocksRJ11/RJ12 6P6C4-way bus splitter board.Vertical 6P6C jack.5mm/0.197" pitch screw terminals.Each row of four (4) solder connection holes allows for the addition of 0.1 inch headers.FR-4 fiberglass PCB, double layer copper.PCB size: 72.5 x 47.35 x 16mm (W x L x H)Rated voltage: 100V.Rated current: 0.5A/each pin.Operating temperature: -20ºC to 50ºCTerminal block specifications:Wire range: 26~16AWG.Stripping length: 5mm.Screw: M2, steel, Cr3+galvanized.
- Disconnect Blocks
| Color | One Color |
|---|---|
| Gauge | 1.0 |
| Model | QTIWYXYS |
| Pitch | 1 Inches |
| Brand Name | QTIWYXYS |
| Part Number | QTIWYXYS |
| Manufacturer | QTIWYXYS |
| Connector Type | Clamp |
| Specification Met | UL |
| Number Of Contacts | 1 |
| Item Dimensions W x H | 1"W x 1"H |
